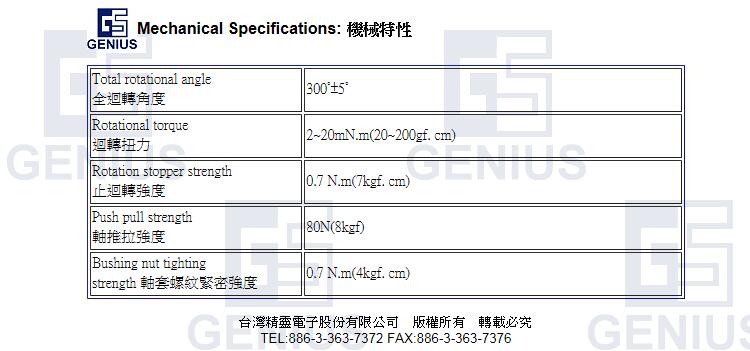

規格參數
| Total rotational angle 全迴轉角度 | 300°±5° | Rotational torque 迴轉扭力 | 2~20mN.m(20~200gf. cm) |
|---|---|---|---|
| Rotation stopper strength 止迴轉強度 | 0.7 N.m(7kgf. cm) | Push pull strength 軸推拉強度 | 80N(8kgf) |

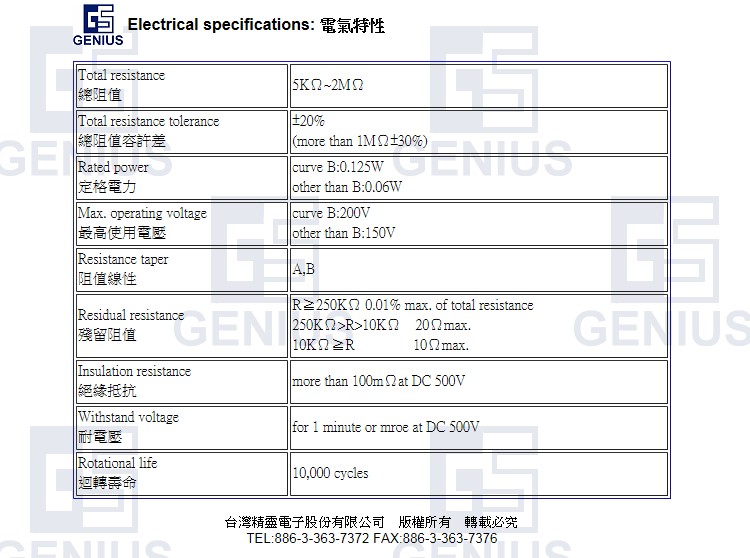

| Bushing nut tighting strength 軸套螺紋緊密強度 | 0.7 N.m(4kgf. cm) | Total resistance 總阻值 | 5KΩ~2MΩ |
| Total resistance tolerance 總阻值容許差 | ±20% (more than 1MΩ±30%) | Rated power 定格電力 | curve B:0.125W other than B:0.06W |

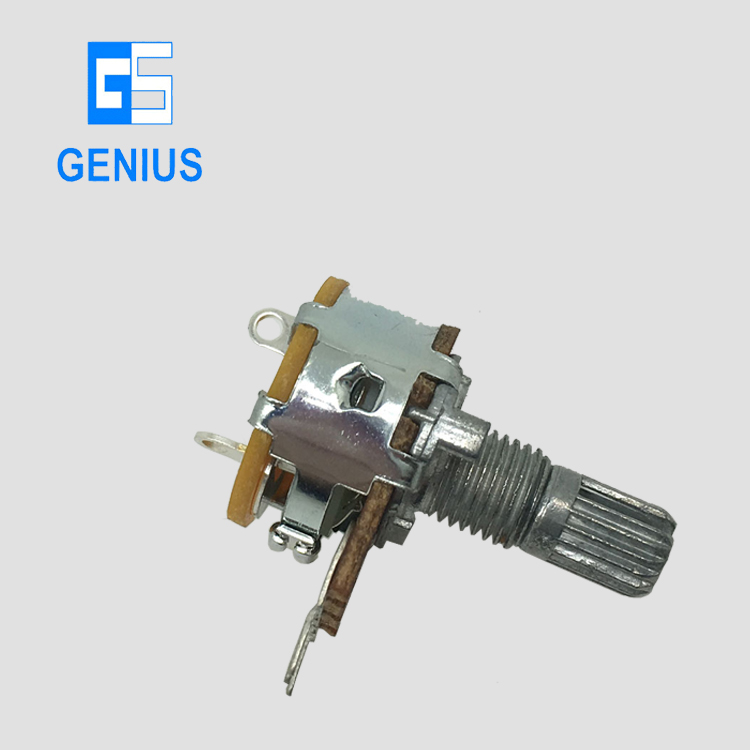

采購：R1610S旋轉帶開關電位器_B10K電位器-精靈電子 單聯電位器
